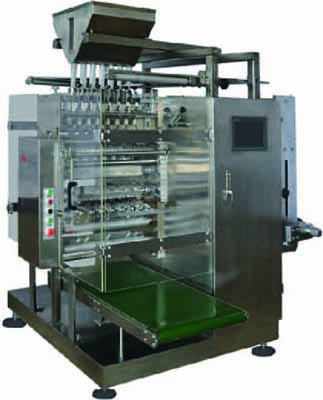

DXDK900四邊封條袋包裝機
DXDK900 FOUR-EDGES SEALING AND LARGE NUMBER OF BAG PACKING MACHINE
特點
Features
四邊封口，同時進行多條袋包裝，包裝效率高。
PLC控制，自動化程度高。
無級變頻調速，性能可靠，操作方便。
光電跟蹤、浮動對標，保證條袋包裝雙面圖案完整，位置準確。
自動真空填充上料（適用于顆粒物料）。
自動打批號、壓縱橫撕裂線。
Sealing four edges of bag.simultaneously packing many bands of bags, having
high packing speed.
Controlled by PLC, having high automatization.
The stepless frequency conversion variable speeds, having reliable performances.
easy operation.
It is equiped with photoelectric tracking device and floating alignment mark to ensure
a complete pattern and precise position on both faces of the package of the band bags.
Automatically vacuum filling feeding.(Applicable for pellets)
Automatically printing serial numbers and pressing longitudinal and transverse breaking lines.
使用范圍
Application
醫藥、食品、化妝品等行業對顆粒、片劑、粘稠、半粘稠物料的包裝。
Applicable for packing pellets,tablets,sticky and semi-sticky materials in
pharmaceutical, food processing and cosmetic industries.
技術參數
Specifications
|
沖裁次數 Cutting frequency
|
≤50次／分( times/min)
|
|
包裝效率 Packing speed(bags/min)
|
350袋／分(bags/min)
|
|
包裝材料 Packing material
|
|
塑鋁塑復合膜 Compound film made of plastic and aluminium and plastic
|
|
包裝劑量 Packing dose
|
顆粒1-20/袋 Cranulation 1-20g/bag
液體5-50ml/袋Liquid 5-50ml/bag
片劑、膠囊：多片（粒）
tablets, capsules:many pieces(pills)
|
|
制袋長度 Bag sizes(L)
|
80-120mm
|
|
制袋寬度Bag sizes(W)
|
40-150mm
|
|
電源總功率 Installed power
|
5kW
|
|
電壓 Voltage
|
380V/50Hz
|
外形尺寸（長×寬×高）
Size L×W×H(mm)
|
1500×1540× 2100
|
|
重量（公斤）Weight(kg)
|
1200
|
