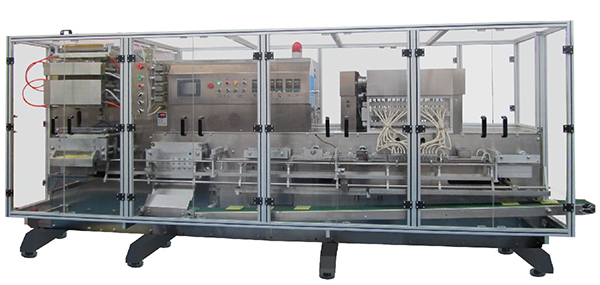

DSP-I塑料安瓶灌封包裝機

DSP-I PLASTIC AMP FILLING AND SEALING PACKING MACHINE

特點

Features

PLC控制，無級變頻調速。

放卷、安瓶成型、灌裝、封尾、打批號、切尾、分切等22個工位由程序控制，連續完成。

人機界面裝置，操作簡單明了。

灌裝頭不滴漏，不起泡沫，不溢出。

采用優質的不銹鋼材料，符合GMP標準。

主要元器件均采用進口。

Controlled by PLC,the stepless frequency conversion variable speeds.

All 22 processes from spreading roll,AMP bottle forming.filling,sealing the end,

printing serial numbers,cutting the end,cutting apart, controlled by programming.

The computer human interface has simple and clear operation.

The filling head doesn’t drop,leak rise in bubbles and spill over. .

Made of high-quality stainless steel,accord with the standard GMP.

Main components are imported.

使用范圍

Application

液態藥品、保健品、食品、化妝品及其他工業領域類似產品的包裝。

Applicable for packing the medicines of liquid state, health articles, food, cosmetics

and simlar other industrial products.

技術參數

Specifications

最大成型深度Max forming depth	10mm
沖裁次數Cutting frequency	≤20次／分( times/min)
包裝效率Packing speed	360瓶／分(bottles / min) 8 - 15支／板(flasks/board)
板塊尺寸Dimensions	長度(L) 315mm（最大）(max．) 寬度(W) 78 - 108mm（最大）(max．)
包裝材料Packing material	PVC/PE 0.3×345mm
灌裝容量Capacity	2- 30ml/支（ml/flask） rigid PVC sheet 0.3×345mm
耗氣量Air consumption	110L/min
耗水量Water consumption	6L/min
電源總功率Installed power	12kW
電壓Voltage	380V/50Hz
外形尺寸（長×寬×高） Szie L×W×H(mm)	3870×1780×1850
重量（公斤）Weight(kg)	3400
